Structural Patterns

Table of Contents

Adapter

📖 Definition

The Adapter Design Pattern is a structural design pattern that allows incompatible interfaces to work together by converting the interface of one class into another that the client expects.

It’s particularly useful in situations where:

  • You’re integrating with a legacy system or a third-party library that doesn’t match your current interface.
  • You want to reuse existing functionality without modifying its source code.
  • You need to bridge the gap between new and old code, or between systems built with different interface designs.

🧩 Class Diagram

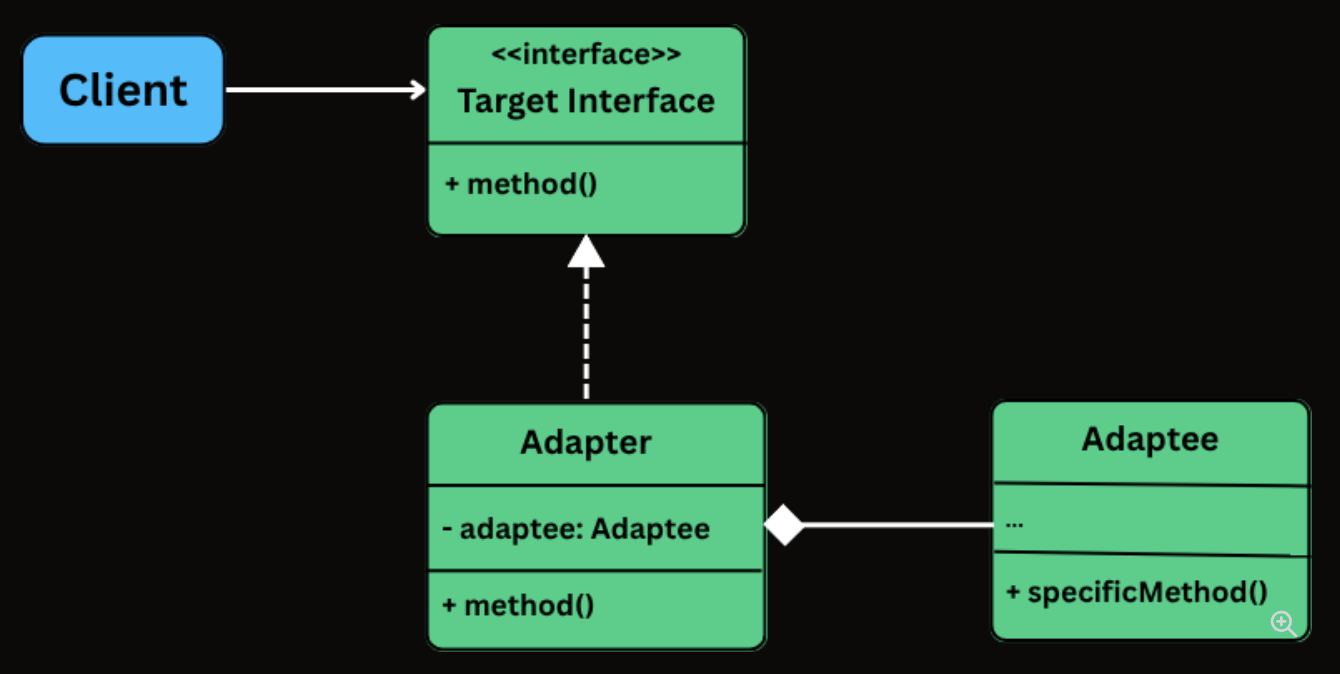

Adapter Pattern Class Diagram

  • Target Interface: The interface that the client code depends on. Every method call from the client goes through this interface.

  • Adaptee: The existing class with a useful implementation but an incompatible interface.

  • Adapter: The translator. It implements the Target interface and holds a reference to the Adaptee, delegating calls with the necessary translation.

  • Client: The code that uses the Target interface. It is completely unaware of the Adaptee or the Adapter’s internal workings.

🛠 Implementation

  1. Define the Target Interface
interface PaymentProcessor {
    void processPayment(double amount, String currency);
    boolean isPaymentSuccessful();
    String getTransactionId();
}
  1. Create the Adaptee Class
class LegacyGateway {
    private long transactionReference;
    private boolean paymentSuccessful;

    public void executeTransaction(double totalAmount, String currency) {
        System.out.println("LegacyGateway: Executing " + currency + " " + totalAmount);
        transactionReference = System.nanoTime();
        paymentSuccessful = true;
        System.out.println("LegacyGateway: Done. Ref: " + transactionReference);
    }

    public boolean checkStatus(long ref) {
        System.out.println("LegacyGateway: Checking status for ref: " + ref);
        return paymentSuccessful;
    }

    public long getReferenceNumber() {
        return transactionReference;
    }
}
  1. Implement the Adapter Class
class LegacyGatewayAdapter implements PaymentProcessor {
    private final LegacyGateway legacyGateway;
    private long currentRef;

    public LegacyGatewayAdapter(LegacyGateway legacyGateway) {
        this.legacyGateway = legacyGateway;
    }

    @Override
    public void processPayment(double amount, String currency) {
        System.out.println("Adapter: Translating processPayment() for " + amount + " " + currency);
        legacyGateway.executeTransaction(amount, currency);
        currentRef = legacyGateway.getReferenceNumber(); // Store for later use
    }

    @Override
    public boolean isPaymentSuccessful() {
        return legacyGateway.checkStatus(currentRef);
    }

    @Override
    public String getTransactionId() {
        return "LEGACY_TXN_" + currentRef;
    }
}
  1. Client Code
public class ECommerceAppV2 {
    public static void main(String[] args) {
        // Modern processor
        PaymentProcessor processor = new InHousePaymentProcessor();
        CheckoutService modernCheckout = new CheckoutService(processor);
        System.out.println("--- Using Modern Processor ---");
        modernCheckout.checkout(199.99, "USD");

        // Legacy gateway through adapter
        System.out.println("\n--- Using Legacy Gateway via Adapter ---");
        LegacyGateway legacy = new LegacyGateway();
        processor = new LegacyGatewayAdapter(legacy);
        CheckoutService legacyCheckout = new CheckoutService(processor);
        legacyCheckout.checkout(75.50, "USD");
    }
}

Bridge

📖 Definition

The Bridge Design Pattern is a structural pattern that lets you decouple an abstraction from its implementation, allowing the two to vary independently.

It’s particularly useful in situations where:

  • You have classes that can be extended in multiple orthogonal dimensions (e.g., shape vs. rendering technology, UI control vs. platform).
  • You want to avoid a deep inheritance hierarchy that multiplies combinations of features.
  • You need to combine multiple variations of behavior or implementation at runtime.

🧩 Class Diagram

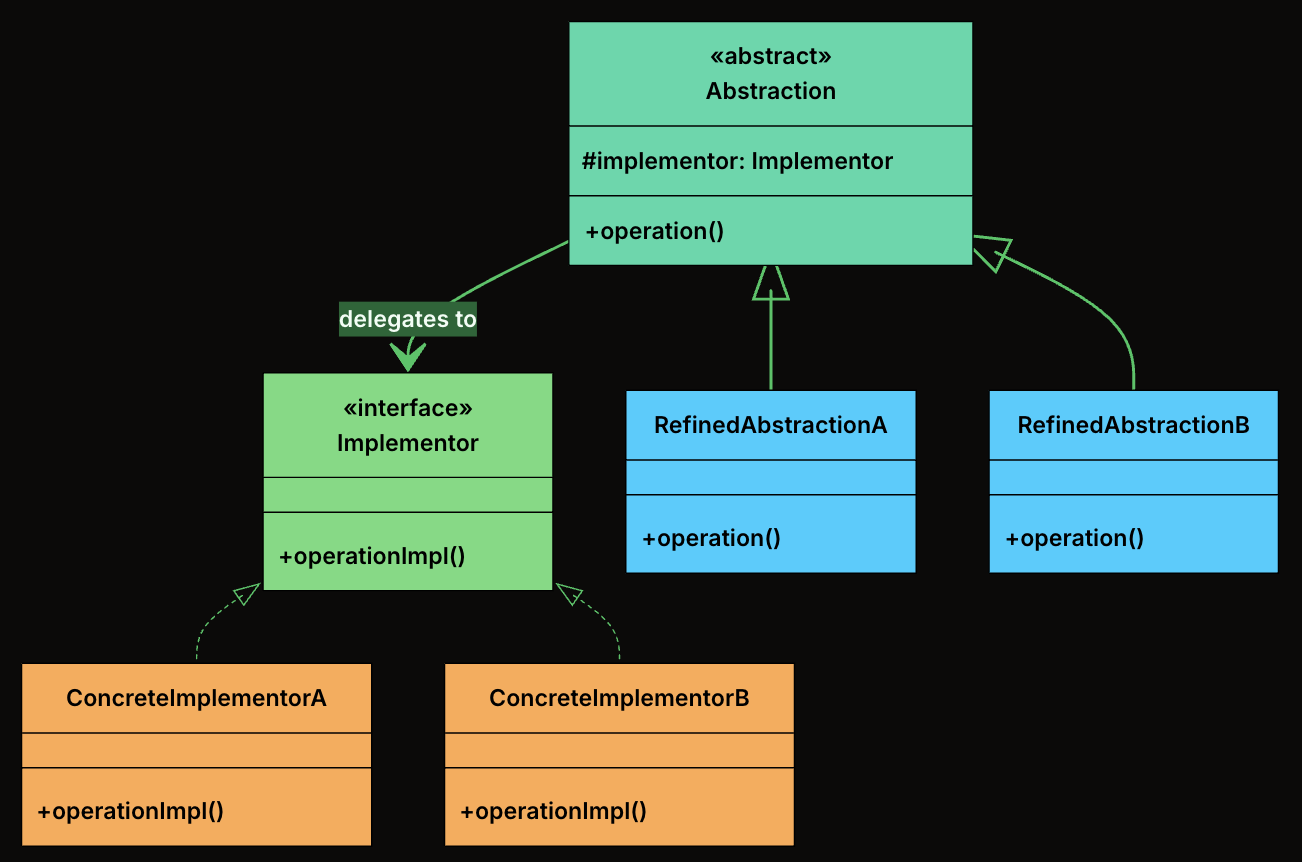

Bridge Pattern Class Diagram

  • Abstraction: The high-level interface that clients interact with. It defines operations in terms that make sense to the domain (e.g., “draw a shape”) and delegates the low-level work to an implementor.

  • RefinedAbstraction: A concrete subclass of Abstraction that adds domain-specific state or behavior. It still delegates to the implementor for low-level operations.

  • Implementor: The interface that defines the low-level operations that concrete implementations must provide. This is the “other side” of the bridge.

  • ConcreteImplementors: A concrete class that implements the Implementor interface with a specific technology or strategy.

🛠 Implementation

  1. Define Implementator Interface
interface Renderer {
    void renderCircle(float radius);
    void renderRectangle(float width, float height);
}
  1. Create Concrete Implementations of the Renderer
  • VectorRenderer
class VectorRenderer implements Renderer {
    @Override
    public void renderCircle(float radius) {
        System.out.println("Drawing a circle of radius " + radius + " using VECTOR rendering.");
    }

    @Override
    public void renderRectangle(float width, float height) {
        System.out.println("Drawing a rectangle " + width + "x" + height + " using VECTOR rendering.");
    }
}
  • RasterRenderer
class RasterRenderer implements Renderer {
    @Override
    public void renderCircle(float radius) {
        System.out.println("Drawing pixels for a circle of radius " + radius + " (RASTER).");
    }

    @Override
    public void renderRectangle(float width, float height) {
        System.out.println("Drawing pixels for a rectangle " + width + "x" + height + " (RASTER).");
    }
}
  1. Define the Abstraction
abstract class Shape {
    protected Renderer renderer;

    public Shape(Renderer renderer) {
        this.renderer = renderer;
    }

    public abstract void draw();
}
  1. Create Concrete Shapes
  • Circle
class Circle extends Shape {
    private final float radius;

    public Circle(Renderer renderer, float radius) {
        super(renderer);
        this.radius = radius;
    }

    @Override
    public void draw() {
        renderer.renderCircle(radius);
    }
}
  • Rectangle
class Rectangle extends Shape {
    private final float width;
    private final float height;

    public Rectangle(Renderer renderer, float width, float height) {
        super(renderer);
        this.width = width;
        this.height = height;
    }

    @Override
    public void draw() {
        renderer.renderRectangle(width, height);
    }
}
  1. Client Code
public class BridgeDemo {
    public static void main(String[] args) {
        Renderer vector = new VectorRenderer();
        Renderer raster = new RasterRenderer();

        Shape circle1 = new Circle(vector, 5);
        Shape circle2 = new Circle(raster, 5);

        Shape rectangle1 = new Rectangle(vector, 10, 4);
        Shape rectangle2 = new Rectangle(raster, 10, 4);

        circle1.draw();     // Vector
        circle2.draw();     // Raster
        rectangle1.draw();  // Vector
        rectangle2.draw();  // Raster
    }
}

Decorator

📖 Definition

The Decorator Design Pattern is a structural pattern that lets you dynamically add new behavior or responsibilities to objects without modifying their underlying code.

It’s particularly useful in situations where:

  • You want to extend the functionality of a class without subclassing it.
  • You need to compose behaviors at runtime, in various combinations.
  • You want to avoid bloated classes filled with if-else logic for optional features.

🧩 Class Diagram

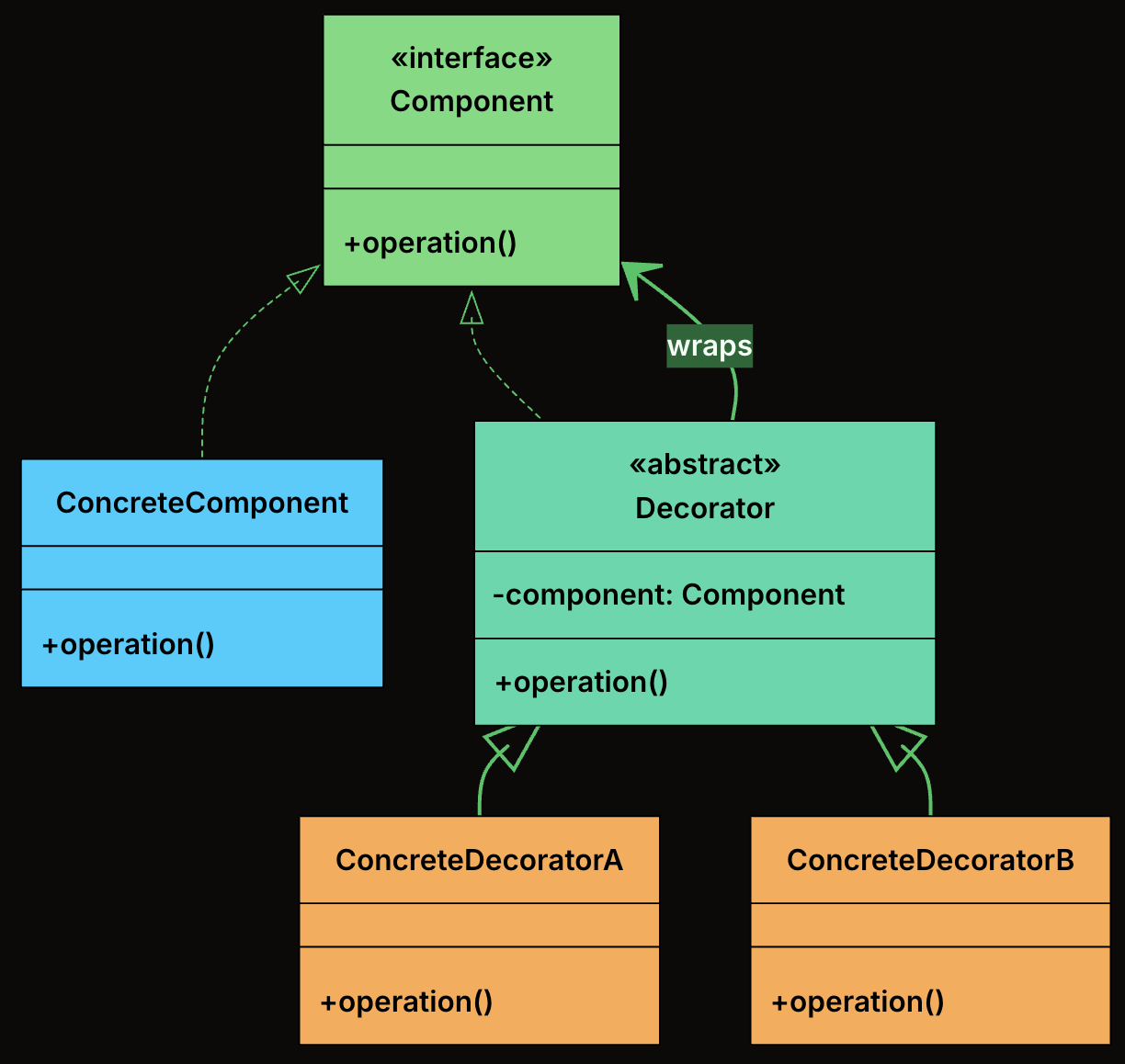

Decorator Pattern Class Diagram

  • Component: Declares the common interface that both the core object and all decorators implement.

  • ConcreteComponent: The base object that can be wrapped with decorators. It provides the default behavior.

  • Decorator: An abstract class that implements the Component interface and holds a reference to another Component. It forwards calls to the wrapped object.

  • ConcreteDecorator: Extend the base decorator to add new functionality before/after calling the wrapped component’s method.

🛠 Implementation

  1. Define the Component Interface
interface TextView {
    void render();
}
  1. Implement the Concrete Component
class PlainTextView implements TextView {
    private final String text;

    public PlainTextView(String text) {
        this.text = text;
    }

    @Override
    public void render() {
        System.out.print(text);
    }
}
  1. Create the Abstract Decorator
abstract class TextDecorator implements TextView {
    protected final TextView inner;

    public TextDecorator(TextView inner) {
        this.inner = inner;
    }
}
  1. Implement Concrete Decorators
  • Bold Decorator
class BoldDecorator extends TextDecorator {
    public BoldDecorator(TextView inner) {
        super(inner);
    }

    @Override
    public void render() {
        System.out.print("<b>");
        inner.render();
        System.out.print("</b>");
    }
}
  • Italic Decorator
class ItalicDecorator extends TextDecorator {
    public ItalicDecorator(TextView inner) {
        super(inner);
    }

    @Override
    public void render() {
        System.out.print("<i>");
        inner.render();
        System.out.print("</i>");
    }
}
  • Underline Decorator
class UnderlineDecorator extends TextDecorator {
    public UnderlineDecorator(TextView inner) {
        super(inner);
    }

    @Override
    public void render() {
        System.out.print("<u>");
        inner.render();
        System.out.print("</u>");
    }
}
  1. Client Code
public class TextRendererApp {
    public static void main(String[] args) {
        TextView text = new PlainTextView("Hello, World!");

        // Plain text
        System.out.print("Plain:                   ");
        text.render();
        System.out.println();

        // Single decorator: Bold
        System.out.print("Bold:                    ");
        TextView boldText = new BoldDecorator(text);
        boldText.render();
        System.out.println();

        // Two decorators: Italic + Underline
        System.out.print("Italic + Underline:      ");
        TextView italicUnderline = new UnderlineDecorator(new ItalicDecorator(text));
        italicUnderline.render();
        System.out.println();

        // Three decorators: Bold + Italic + Underline
        System.out.print("Bold + Italic + Underline: ");
        TextView allStyles = new UnderlineDecorator(
            new ItalicDecorator(new BoldDecorator(text)));
        allStyles.render();
        System.out.println();
    }
}
  • Output
Plain:                   Hello, World!
Bold:                    <b>Hello, World!</b>
Italic + Underline:      <u><i>Hello, World!</i></u>
Bold + Italic + Underline: <u><i><b>Hello, World!</b></i></u>

Composite

📖 Definition

The Composite Design Pattern is a structural pattern that lets you treat individual objects and compositions of objects uniformly.

It allows you to build tree-like structures (e.g., file systems, UI hierarchies, organizational charts) where clients can work with both single elements and groups of elements using the same interface.

It’s particularly useful in situations where:

  • You need to represent part-whole hierarchies.
  • You want to perform operations on both leaf nodes and composite nodes in a consistent way.
  • You want to avoid writing special-case logic to distinguish between “single” and “grouped” objects.

🧩 Class Diagram

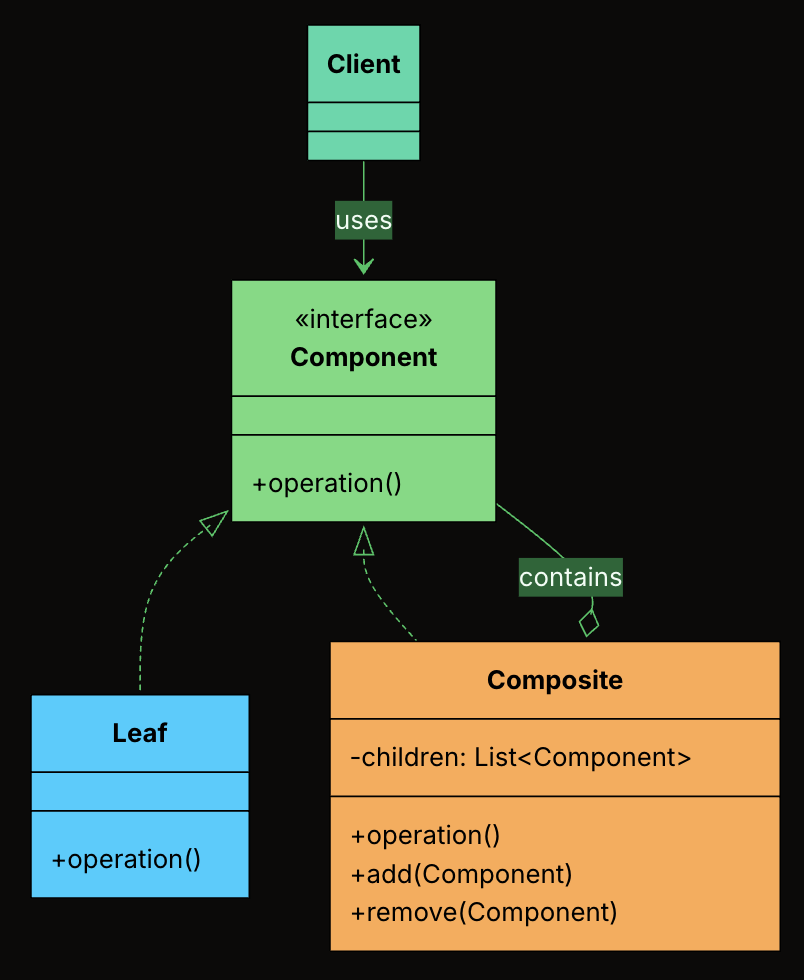

Composite Pattern Class Diagram

  • Component Interface: The shared interface that declares operations common to both leaves and composites.

  • Leaf: An end object in the tree that has no children. It implements the Component interface directly.

  • Composite: A container that holds child Components and implements the Component interface by delegating to its children.

  • Client: Works with the tree through the Component interface, without knowing whether it holds a leaf or a composite.

🛠 Implementation

  1. Define the Component Interface
interface FileSystemItem {
    int getSize();
    void printStructure(String indent);
    void delete();
}
  1. Create the Leaf Class
class File implements FileSystemItem {
    private final String name;
    private final int size;

    public File(String name, int size) {
        this.name = name;
        this.size = size;
    }

    @Override
    public int getSize() {
        return size;
    }

    @Override
    public void printStructure(String indent) {
        System.out.println(indent + "- " + name + " (" + size + " KB)");
    }

    @Override
    public void delete() {
        System.out.println("Deleting file: " + name);
    }
}
  1. Create the Composite Class
class Folder implements FileSystemItem {
    private final String name;
    private final List<FileSystemItem> children = new ArrayList<>();

    public Folder(String name) {
        this.name = name;
    }

    public void addItem(FileSystemItem item) {
        children.add(item);
    }

    public void removeItem(FileSystemItem item) {
        children.remove(item);
    }

    @Override
    public int getSize() {
        int total = 0;
        for (FileSystemItem item : children) {
            total += item.getSize();
        }
        return total;
    }

    @Override
    public void printStructure(String indent) {
        System.out.println(indent + "+ " + name + "/");
        for (FileSystemItem item : children) {
            item.printStructure(indent + "  ");
        }
    }

    @Override
    public void delete() {
        for (FileSystemItem item : children) {
            item.delete();
        }
        System.out.println("Deleting folder: " + name);
    }
}
  1. Client Code
public class FileExplorerApp {
    public static void main(String[] args) {
        FileSystemItem file1 = new File("readme.txt", 5);
        FileSystemItem file2 = new File("photo.jpg", 1500);
        FileSystemItem file3 = new File("data.csv", 300);

        Folder documents = new Folder("Documents");
        documents.addItem(file1);
        documents.addItem(file3);

        Folder pictures = new Folder("Pictures");
        pictures.addItem(file2);

        Folder home = new Folder("Home");
        home.addItem(documents);
        home.addItem(pictures);

        System.out.println("---- File Structure ----");
        home.printStructure("");

        System.out.println("\nTotal Size: " + home.getSize() + " KB");

        System.out.println("\n---- Deleting All ----");
        home.delete();
    }
}
  • Output
---- File Structure ----
+ Home/
  + Documents/
    - readme.txt (5 KB)
    - data.csv (300 KB)
  + Pictures/
    - photo.jpg (1500 KB)

Total Size: 1805 KB

---- Deleting All ----
Deleting file: readme.txt
Deleting file: data.csv
Deleting folder: Documents
Deleting file: photo.jpg
Deleting folder: Pictures
Deleting folder: Home

Facade

📖 Definition

The Facade Design Pattern is a structural design pattern that provides a single, simplified interface to a complex subsystem. Instead of forcing clients to coordinate many moving parts, a facade hides the internal complexity and exposes a clean, easy-to-use entry point.

It’s particularly useful in situations where:

  • Your system contains many interdependent classes or low-level APIs.
  • The client doesn’t need to know how those parts work internally.
  • You want to reduce coupling and make the system easier to learn and use.

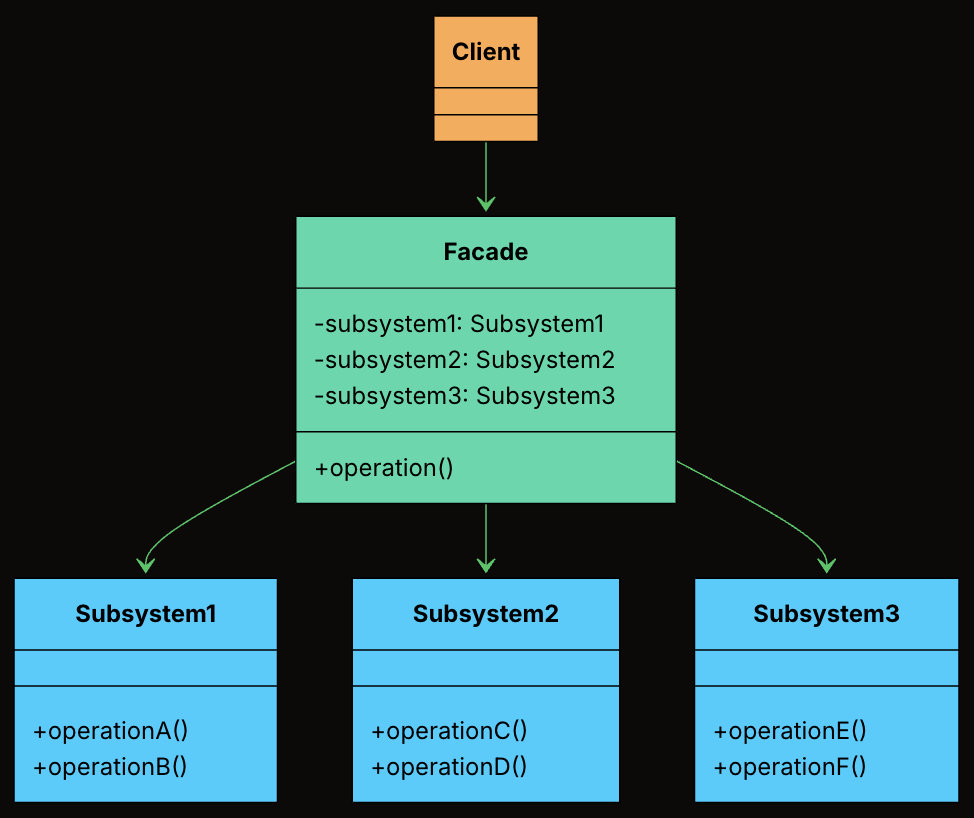

🧩 Class Diagram

Facade Pattern Class Diagram

  • Facade: Knows which subsystem classes to use and in what order. Delegates requests to appropriate subsystem methods without exposing internal details to the client.

  • Subsystem Classes: Provides the actual business logic to handle a specific task. Do not know about the facade. Can still be used independently if needed.

  • Client: Uses the Facade to initiate a deployment, instead of interacting with the subsystem classes directly.

🛠 Implementation

  1. Define Facade Class
class DeploymentFacade {
    private VersionControlSystem vcs = new VersionControlSystem();
    private BuildSystem buildSystem = new BuildSystem();
    private TestingFramework testingFramework = new TestingFramework();
    private DeploymentTarget deploymentTarget = new DeploymentTarget();

    public boolean deployApplication(String branch, String serverAddress) {
        System.out.println("\nFACADE: --- Initiating FULL DEPLOYMENT for branch: " + branch + " to " + serverAddress + " ---");
        boolean success = true;

        try {
            vcs.pullLatestChanges(branch);

            if (!buildSystem.compileProject()) {
                System.err.println("FACADE: DEPLOYMENT FAILED - Build compilation failed.");
                return false;
            }

            String artifactPath = buildSystem.getArtifactPath();

            if (!testingFramework.runUnitTests()) {
                System.err.println("FACADE: DEPLOYMENT FAILED - Unit tests failed.");
                return false;
            }

            if (!testingFramework.runIntegrationTests()) {
                System.err.println("FACADE: DEPLOYMENT FAILED - Integration tests failed.");
                return false;
            }

            deploymentTarget.transferArtifact(artifactPath, serverAddress);
            deploymentTarget.activateNewVersion(serverAddress);

            System.out.println("FACADE: APPLICATION DEPLOYED SUCCESSFULLY to " + serverAddress + "!");
        } catch (Exception e) {
            System.err.println("FACADE: DEPLOYMENT FAILED - An unexpected error occurred: " + e.getMessage());
            e.printStackTrace();
            success = false;
        }

        return success;
    }
}
  1. Client Code
public class DeploymentAppFacade {
    public static void main(String[] args) {
        DeploymentFacade deploymentFacade = new DeploymentFacade();

        // Deploy to production
        deploymentFacade.deployApplication("main", "prod.server.example.com");

        // Deploy a feature branch to staging
        System.out.println("\n--- Deploying feature branch to staging ---");
        deploymentFacade.deployApplication("feature/new-ui", "staging.server.example.com");
    }
}
